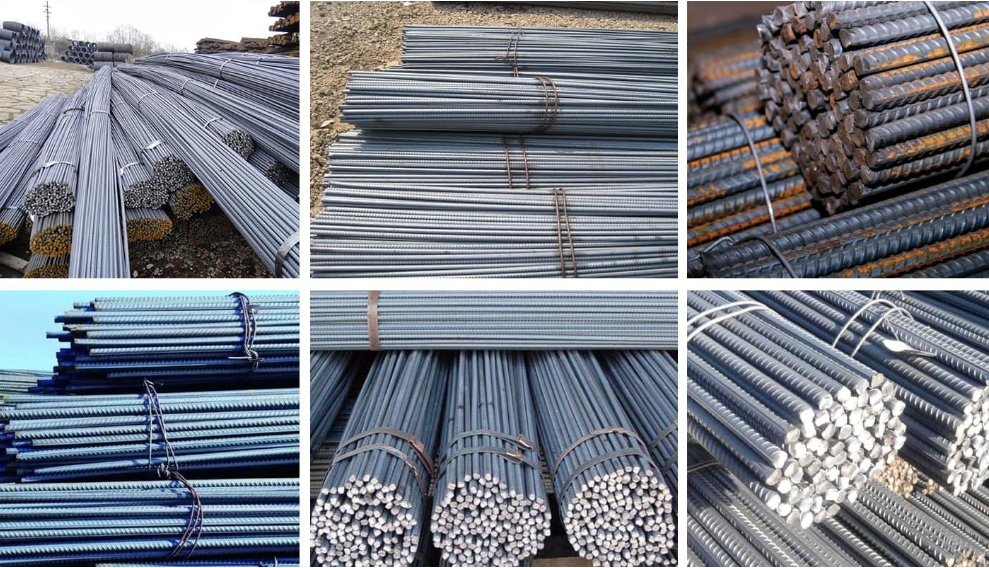

Carbon Steel Reinforcing Bar (Rebar)
Product description
| Grade | HPB300, HRB335, HRB400, HRBF400, HRB400E, HRBF400E, HRB500, HRBF500, HRB500E, HRBF500E, HRB600, etc. |
| Standard | GB 1499.2-2018 |
| Application | Steel rebar is primarily used in concrete structural applications. These include floors, walls, pillars, and other projects that involve carrying heavy loads or aren’t supported well enough for just concrete to hold. Beyond these uses, rebar has also developed popularity in more decorative applications such as gates, furnishings, and art. |
| *Here are normal size and standard, special requirements please contact us | |
| Nominal Size | Diameter(in) | Diameter(mm) | Nominal Size | Diameter(in) | Diameter(mm) |
| #3 | 0.375 | 10 | #8 | 1.000 | 25 |
| #4 | 0.500 | 12 | #9 | 1.128 | 28 |
| #5 | 0.625 | 16 | #10 | 1.270 | 32 |
| #6 | 0.750 | 20 | #11 | 1.140 | 36 |
| #7 | 0.875 | 22 | #14 | 1.693 | 40 |
| Chinese Rebar Code | Yield Strength (Mpa） | Tensile Strength (Mpa） | Carbon Content |
| HRB400, HRBF400, HRB400E, HRBF400E | 400 | 540 | ≤0.25 |
| HRB500, HRBF500, HRB500E, HRBF500E | 500 | 630 | ≤0.25 |
| HRB600 | 600 | 730 | ≤ 0.28 |
Product Details
ASTM A615 Reinforcing Bar Grade 60 Description
ASTM A615 Steel Rebar increases the tensile strength of concrete and can be used for both primary and secondary reinforcement. It helps absorb stress and weight and facilitates the more even distribution of the tension caused by the expansion and contraction of concrete when it is exposed to heat and cold, respectively.
ASTM A615 Steel Rebar has a rough, blue-grey finish with raised ribs throughout the bar. ASTM A615 Grade 60 Steel Rebar offers enhanced yield strength of at least 60 thousand pounds per square inch, or 420 megapascals on the metric grading scale. It also features a continuous line system, with one line running along the length of the bar which is offset a minimum of five spaces from the center. These characteristics make Grade 60 Steel Rebar particularly well-suited for medium to heavy-duty concrete reinforcement applications.
| ASTM A615 American Rebar Specifications | ||||
| DIMENSION ( mm. ) |
LENGTH ( m. ) |
NUMBERS OF REBARS (QUANTITY) |
ASTM A 615 / M Grade 60 | |
| Kg / m. | THEORETICAL WEIGHT OF BUNDLE ( Kg. ) | |||
| 8 | 12 | 420 | 0.395 | 1990.800 |
| 10 | 12 | 270 | 0.617 | 1999.080 |
| 12 | 12 | 184 | 0.888 | 1960.704 |
| 14 | 12 | 136 | 1.208 | 1971.456 |
| 16 | 12 | 104 | 1.578 | 1969.344 |
| 18 | 12 | 82 | 2.000 | 1968.000 |
| 20 | 12 | 66 | 2.466 | 1953.072 |
| 22 | 12 | 54 | 2.984 | 1933.632 |
| 4 | 12 | 47 | 3.550 | 2002.200 |
| 25 | 12 | 42 | 3.853 | 1941.912 |
| 26 | 12 | 40 | 4.168 | 2000.640 |
| 28 | 12 | 33 | 4.834 | 1914.264 |
| 30 | 12 | 30 | 5.550 | 1998.000 |
| 32 | 12 | 26 | 6.313 | 1969.656 |
| 36 | 12 | 21 | 7.990 | 2013.480 |
| 40 | 12 | 17 | 9.865 | 2012.460 |
Scope of Application
Widely used in houses, bridges, roads, especially railways and other civil engineering.
Supply Ability
| Supply Ability | 2000 Ton/Tons per Month |
Lead time
| Quantity (tons) | 1-50 | 51-500 | 501-1000 | > 1000 |
| Lead time (days) | 7 | 10 | 15 | To be negotiated |
PACKING AND DELIVERY
We can provide,
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation
APPLICATION AREAS
