AISI/SAE 1045 C45 Carbon Steel Bar
Product Description
| Product Name | AISI/SAE 1045 C45 Carbon Steel Bar | |||
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
| Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm | |||
| Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm | |||
| Hexagon Bar Common Specifications | AF5.8mm-17mm | |||
| Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm | |||
| Length | 1-6meters, Size Accept Custom | |||
| Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
| Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 | |
| Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 | |
| Surface Process | Bright, Polished, Black | |||
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |||
Chemical Composition
| Grade | Mn | S | C | P | Si | Cr | Ni |
| AISI 1045 | 0.5-0.8 | 0.035 | 0.5-0.42 | 0.035 | 0.17-0.37 | 0.25 | 0.3 |
| Grade | Tensile Strength (Ksi)min | Elongation(%in50mm)min | Yield Strength 0.2%Proof(ksi)min | Hardness |
| AISI 1045 | 600 | 40 | 355 | 229 |
Product Details
| Rod Diameter | 3-70mm | 0.11"-2.75"inch |
| Square Diameter | 6.35-76.2mm | 0.25"-3"inch |
| Flat Bar Thickness | 3.175-76.2mm | 0.125"-3"inch |
| Flat Bar Width | 2.54-304.8mm | 0.1"-12"inch |
| Length | 1-12m or customize according to your needs | |
| Shape | Rod, Square, Flat Bar, Hexagonal, etc. | |
| Process | Heat Resistance, Fabrication, Cold Working, Hot Working, Heat Treatment, Machining, Welding, etc. | |
| *Here are normal size and standard, special requirements please contact us | ||
| EU EN |
Inter ISO |
USA AISI |
Japan JIS |
Germany DIN |
China GB |
France AFNOR |
England BS |
Canada HG |
European EN |
| S275JR | E275B | A283D A529 Gr.D |
SS400 | RSt42-2 St44-2 |
Q235 | E28-2 | 161-430 161-43A 161-43B |
260W 260WT |
Fe430B |
| Italy UNI |
Spain UNE |
Sweden SS |
Poland PN |
Finland SFS |
Austria ONORM |
Russia GOST |
Norway NS |
Portugal NP |
India IS |
| Fe430B | AE255B | 1411 1412 |
St4V | Fe44B | St42F St430B | St4ps St4sp |
NS12142 | FE430-B | IS2062 |

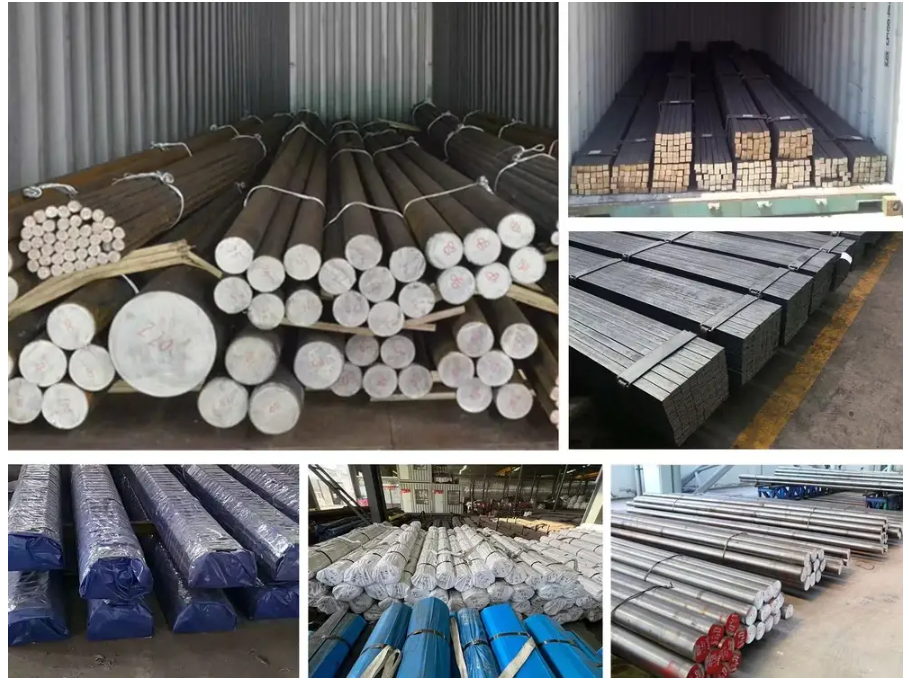

PACKING AND DELIVERY
We can provide,
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation
