Pipe fittings

Pipe fittings are an indispensable component in all types of piping systems, like key components in precision instruments—small yet crucial. Whether it's a household water supply or drainage system or a large-scale industrial pipe network, pipe fittings perform critical tasks such as connection, control, redirection, diversion, sealing, and support, ensuring the stable and efficient operation of the piping system.

Types of Pipe Fittings

Pipe fittings come in a wide variety and can be categorized in various ways based on different standards:

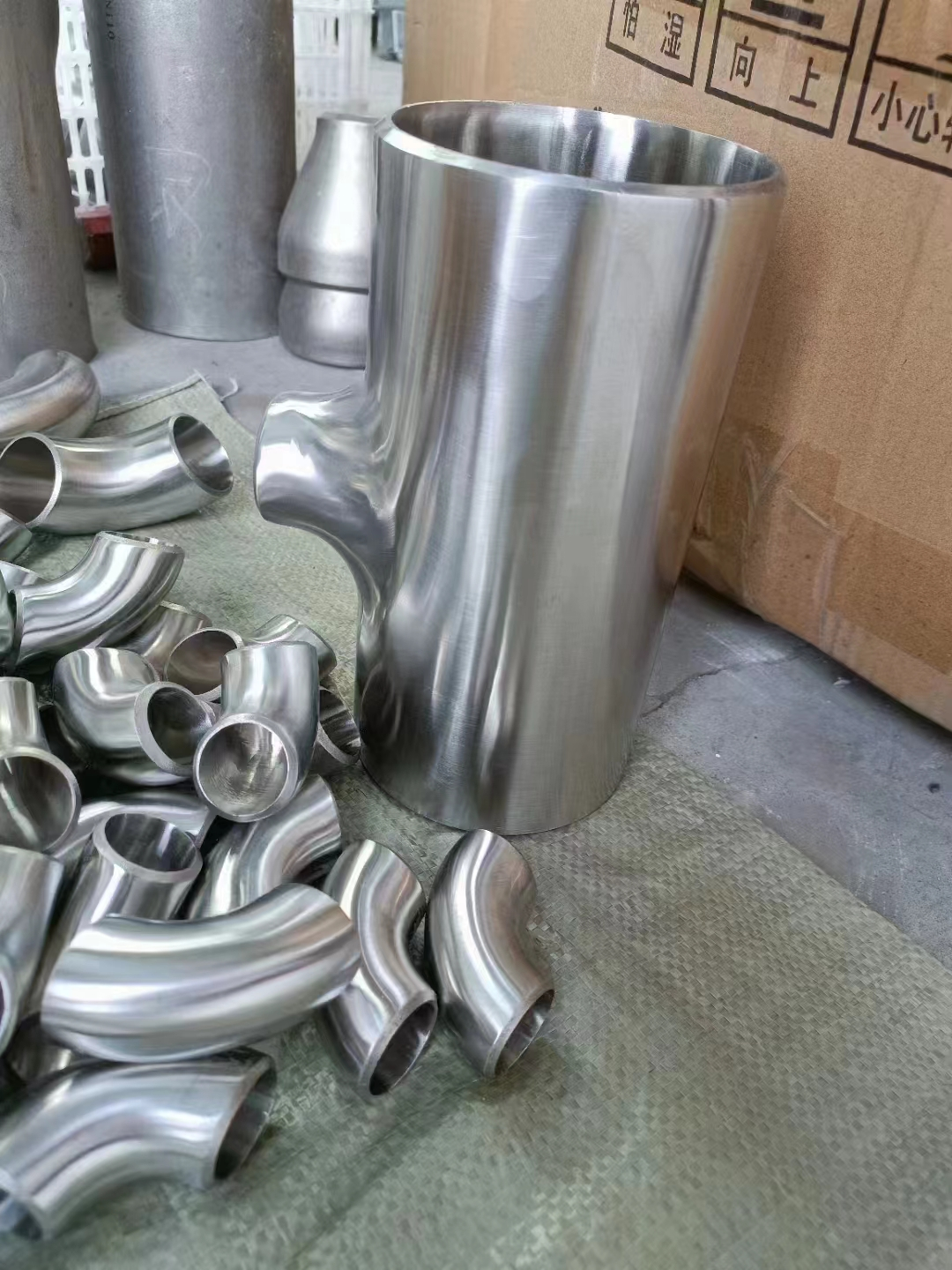

• Classification by Application: Fittings used to connect pipes, such as flanges, achieve a secure connection through bolted connections and are often used in areas requiring frequent disassembly or where tight sealing is critical. Unions facilitate assembly and disassembly, as well as repairs. Couplings are used to connect two straight pipes of the same diameter for ease of operation. Fittings that change the direction of pipes, such as elbows, with common examples being 90-degree and 45-degree elbows, are used where pipes need to bend, allowing them to bypass obstacles and facilitate optimal layout. Fittings that change pipe diameters, such as reducers, connect pipes of different diameters, ensuring a smooth transition of fluid between them and resolving pipe diameter mismatches. Pipe branching accessories, such as tees, can split a single pipe into two or merge two pipes into one, and are widely used at the points where flows diverge or merge in a piping system. Crosses allow for four-way pipe connections, suitable for more complex branching needs. Pipe sealing accessories, such as gaskets, are placed between two joints to fill gaps and prevent fluid leakage. Teflon tape is often wrapped around threaded connections to enhance sealing. Blind plates are used to temporarily or permanently seal one end of a pipe, ensuring the safe operation of the piping system. Pipe securing accessories, such as brackets, support the weight of the pipe and reduce deformation caused by gravity or fluid pressure. Pipe clamps securely secure the pipe to prevent displacement.

• Classification by connection method: Welded pipe fittings connect the pipe to the pipe through welding, offering high strength and excellent sealing. They are suitable for high-temperature, high-pressure, and pipeline systems with stringent sealing requirements. However, the welding process is complex and can be difficult to disassemble for later maintenance. Threaded pipe fittings utilize threads for connection, making them easier to install and disassemble. They are commonly used in low-pressure, small-diameter piping systems, such as household water and drainage systems. However, threaded connections have relatively weak sealing properties and require the use of sealing materials to ensure a tight seal. Compression fittings achieve sealing and connection through the extrusion of the ferrule, offering quick installation and reliable sealing. They are commonly used in small-diameter piping systems such as instrumentation and pneumatics. Clamp fittings use a clamp to connect two pipes or fittings. They offer simple connections and quick installation and removal, making them suitable for applications where speed is critical, such as fire protection piping systems. Socket fittings are inserted into the pipe end and then sealed. They are commonly used to connect cast iron and concrete pipes. While relatively simple to operate, they do require certain insertion depths and sealing processes.

Materials for Pipe Fittings

Different working environments and media place varying demands on the performance of pipe fittings, necessitating the use of a variety of materials for pipe fittings:

• Metal: Carbon steel offers relatively low cost, high strength, and excellent processability. It is widely used in general industrial piping and building water supply and drainage systems. However, carbon steel has poor corrosion resistance and requires anti-corrosion treatments such as galvanizing and painting in some specialized environments. Stainless steel offers excellent corrosion resistance, high-temperature resistance, and good mechanical properties, making it commonly used in industries such as food, medicine, chemicals, and marine applications, where corrosion resistance is extremely demanding. Common stainless steel grades include 304 and 316. 316 stainless steel incorporates molybdenum in 304, further enhancing its corrosion resistance, particularly against chlorides. Copper alloys offer excellent thermal and electrical conductivity, good processability, and good corrosion resistance, making them commonly used in plumbing systems for water supply, heating, and cooling, such as household hot water pipes. Furthermore, copper alloys' antibacterial properties give them a unique advantage in environments with high hygiene requirements.

• Non-metallic Materials: Plastic pipe fittings are widely used due to their lightweight, corrosion-resistant, easy installation, and low price. PPR pipes are commonly used in household hot and cold water supply systems. They are non-toxic, hygienic, heat-resistant, and recyclable. PVC pipes are widely used in drainage pipes and cable protection tubing, offering excellent corrosion resistance and insulation properties. Rubber pipe fittings offer excellent flexibility and sealing properties. They are commonly used to connect plumbing equipment with flexible connections, such as washing machine drain pipes and sanitary fixture connectors. They also serve as seals in piping systems, such as rubber gaskets and sealing rings.

Application Areas of Pipe Fittings

Pipe fittings are found in various fields and play a critical role in ensuring the normal operation of production and life:

• Construction: In a building's water supply and drainage system, pipe fittings are crucial for transporting domestic water and discharging wastewater. From the connection of incoming water pipes to the plumbing layout in bathrooms and kitchens, various pipe fittings and valves are essential. For example, faucets and angle valves control the on and off flow of water; tees and elbows branch and redirect pipes, ensuring smooth water flow to various points of use. In fire protection systems, pipe fittings are even more crucial in protecting life and property. Fire protection pipes must be connected into a complete network using various fittings to ensure that firefighting water can be quickly and accurately delivered to various firefighting points in the event of a fire. At the same time, fire protection systems place stringent demands on the pressure resistance, sealing, and reliability of pipe fittings to ensure proper operation in emergency situations.

• Industrial Sector: In the petrochemical industry, piping systems transport a variety of flammable, explosive, and corrosive media, placing extremely stringent demands on pipe fittings. Pipe fittings and valves must possess high strength, high corrosion resistance, and excellent sealing properties to ensure safe and stable production processes. For example, stainless steel and special alloy pipe fittings are widely used in crude oil pipelines in refineries and chemical reaction material pipelines in chemical plants, capable of withstanding high temperatures, high pressures, and highly corrosive media. In the power industry, whether in thermal, hydroelectric, or nuclear power generation, piping systems play a vital role. Pipes transporting media such as steam, water, and oil require corresponding pipe fittings to facilitate the transmission, control, and regulation of these media. For example, high-temperature, high-pressure steam pipelines in power plants require high-temperature, high-pressure-resistant alloy steel pipe fittings and valves to ensure efficient steam transportation and the proper operation of the units.

Although seemingly mundane, pipe fittings play an irreplaceable role in various piping systems. From the diversity of types to the richness of materials, and the breadth of applications, every link is closely connected, together building a vast and orderly world of piping. In the future, with the continuous advancement of technology and the sustainable development of industry, pipe fittings will continue to innovate and upgrade to meet more complex and demanding application requirements, providing more solid support for the development of various industries.
