A36/Q235/S235JR Carbon Steel Plate
Product Introduction
1.High strength: carbon steel is a kind of steel containing carbon elements, with high strength and hardness, can be used to manufacture a variety of machine parts and building materials.
2. Good plasticity: carbon steel can be processed into various shapes by forging, rolling and other processes, and can be chrome plated on other materials, hot dip galvanizing and other treatments to improve corrosion resistance.
3. Low price: carbon steel is a common industrial material, because its raw materials are easy to obtain, the process is simple, the price is relatively low compared with other alloy steels, and the use cost is low.
Product Description
| Product Name | A36/Q235/S235JR Carbon Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| C | Cu | Fe | Mn | P | Si | S |
| 0.25~0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
| A36 | Limit Tensile Strength | Tensile Strength,
Yield Strength |
Elongation at Break
(Unit: 200mm) |
Elongation at Break
(Unit: 50mm) |
Modulus of Elasticity | Bulk Modulus
(Typical for Steel) |
Poisson's Ratio | Shear Modulus |
| Metric | 400~550MPa | 250MPa | 20.0% | 23.0% | 200GPa | 140GPa | 0.260 | 79.3GPa |
| Imperial | 58000~79800psi | 36300psi | 20.0% | 23.0% | 29000ksi | 20300ksi | 0.260 | 11500ksi |
Product display
Specification
| Standard | ASTM |
| Delivery Time | 8-14 days |
| Application | Boiler Plate making pipes |
| Shape | rectangle |
| Alloy Or Not | Non-Alloy |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Product name | carbon steel plate |
| Material | NM360 NM400 NM450 NM500 |
| Type | corrugated steel sheet |
| Width | 600mm-1250mm |
| Length | Customers' Requirement |
| Shape | Flat.sheet |
| Technique | Cold Rolled Hot Rolled Galvanized |
| Packing | STANDARD PACKING |
| MOQ | 5 Tons |
| Steel Grade | ASTM |

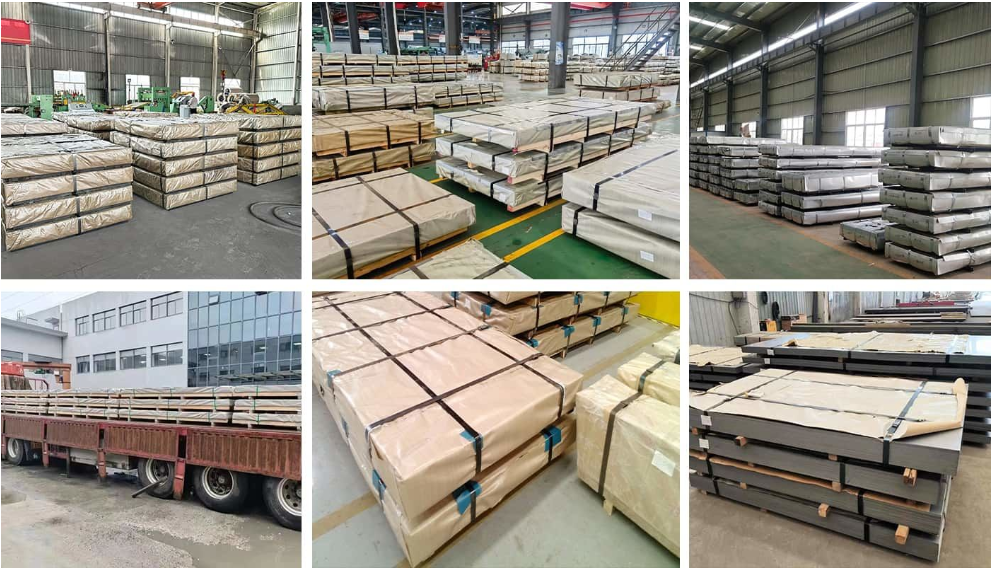

PACKING AND DELIVERY
We can provide,
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation
