SA516GR.70 Carbon steel plate
Product Description
| Product Name | SA516GR.70 Carbon Steel Plate |
| Material | 4130、4140、AISI4140、A516Gr70、A537C12、A572Gr50、A588GrB、A709Gr50、A633D、A514、A517、AH36,API5L-B、1E0650、1E1006、10CrMo9-10、BB41BF、BB503、CoetenB、DH36、EH36、P355GH、X52、X56、X60、X65、X70、Q460D、Q460、Q245R、Q295、Q345、Q390、Q420、Q550CFC、Q550D、SS400、S235、S235JR、A36、S235J0、S275JR、S275J0、S275J2、S275NL、S355K2、S355NL、S355JR、S355J0、S355J2、S355G2+N、S355J2C+N、SA283GrA、SA612M、SA387Gr11、SA387Gr22、SA387Gr5、SA387Gr11、SA285GrC、SM400A、SM490、SM520、SM570、St523、St37、StE355、StE460、SHT60、S690Q、S690QL、S890Q、S960Q、WH60、WH70、WH70Q、WQ590D、WQ690、WQ700、WQ890、WQ960、WDB620 |
| Surface | Natural color coated galvanized or customized |
| Technique | hot rolled or cold rolled |
| Application | SA516Gr. 70 is widely used in petroleum, chemical industry, power station, boiler and other industries to make reactors, heat exchangers, separators, spherical tanks, gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler drums, liquefied petroleum gas cylinders, high-pressure water pipes of hydropower stations, water turbine shells and other equipment and components. |
| Standard | DIN GB JIS BA AISI ASTM EN GOST etc. |
| Delivery time | Within 7-15 workdays after receiving deposit or L/C |
| Export packing | Steel strips package or seaworthy packing |
| Capacity | 250,000 tons/year |
| Payment | T/T L/C, Western Union etc. |
Product Parameters
| Product Name | sa516gr70 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| SA516 Grade 70 Chemical Composition | |||||
| Grade SA516 grade 70 | The Element Max(%) | ||||
| C | Si | Mn | P | S | |
| Thick<12.5mm | 0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick12.5-50mm | 0.28 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick50-100mm | 0.30 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick100-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Grade | SA516 Grade 70 Mechanical Property | |||
| Thickness | Yield | Tensile | Elongation | |
| SA516 Grade 70 | mm | Min Mpa | Mpa | Min % |
| 6-50 | 260 | 485-620 | 21% | |
| 50-200 | 260 | 485-620 | 17% | |
| Physical Performance | Metric | Imperial |
| Density | 7.80 g/cc | 0.282 lb/in³ |
Lead Time
| Quantity(Tons) | 1 - 10 | 11 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 3 | 7 | 8 | To be negotiated |

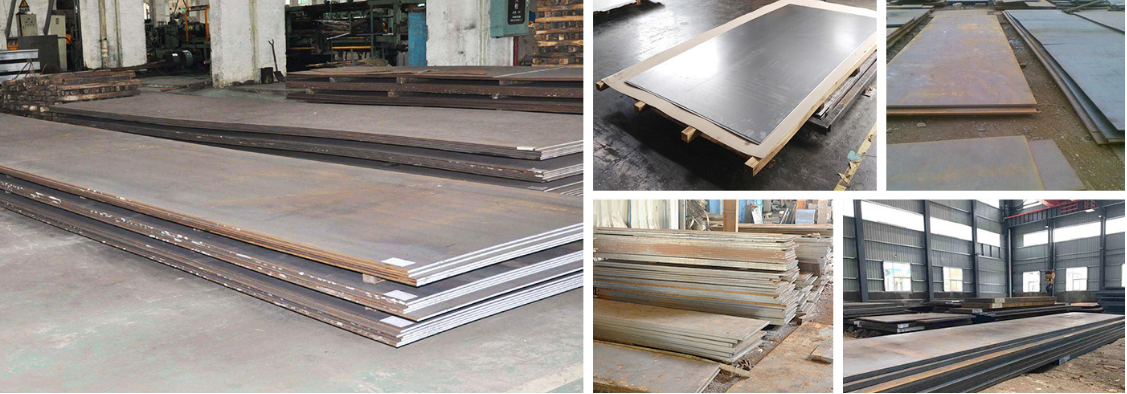

Product show
Application area
We adhere to the "quality first, service first, continuous improvement and innovation, customer satisfaction" business policy, with "zero defects, zero complaints" as the quality goal.

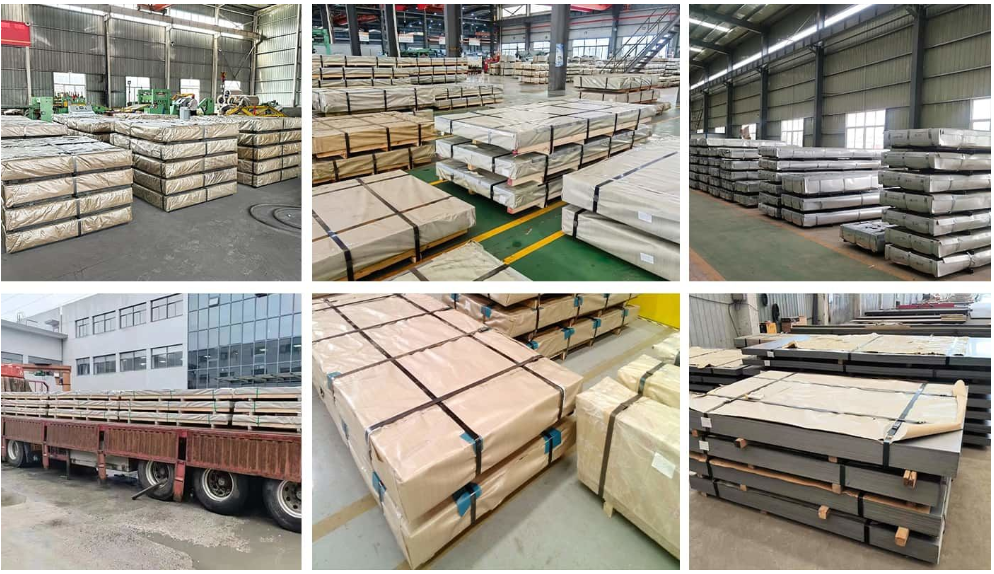

Products packing
We can provide,
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation
